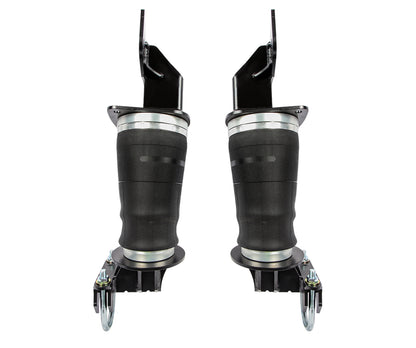

Carli Long Travel Air Bag System, For 4.5" Systems, Super Duty 17-23 F250/F350

Carl Long Travel Air Bag Systems are the solution for customers wanting to increase load capacity without sacrificing performance.

Increase the load capacity and towing capability of your Super Duty without sacrificing ride quality and comfort. Our airbags work with up to 12″ of suspension travel and are 100% bolt-on DIY. You can install onboard air or use them manually. These are heavy-duty and rated at 2,000lbs each (up to 4,000lbs of capacity at 100 psi) with a normal operating range of 5 to 75 psi, suitable for big 5th wheels, work trucks, campers, boats, bumper pull trailers and hauling.

These were designed to work in conjunction with our Full Progressive Leaf Springs to regain the lost payload capacity and create an adjustable solution for varying loads. These will work with add-a-packs as well but the factory bump-stop tang will need to be cut off the factory block.

NOTE: Ford Long travel airbags will ONLY work with rear lifts that level to a 4.5″ Front lift. We recommend 2″ of lift in the rear over trucks with 3″ factory blocks.

• Supports up to 12" of rear travel.
• 2,000lb capacity per bag at max 100psi.
• Restores Factory payload to full progressive spring pack.
• Fits trucks with 3.5", 4.0" and 4.5" axle tubes - Verify before purchase.
• Can be used as manual fill or with onboard air systems.
• Compatible with Carli 4.5"/5.5" lift systems only.

Fitment

3.5" Axle Tube -  17-23 F-250/F-350 SRW w/ 10.5 Sterling Differential

4.0" Axle Tube - 17-23 F-250 TREMOR, F-250 High Capacity Tow Package & F-350 SRW 4X4 w/  Dana M275

4.5" Axle Tube - 17-23 F-350/450 DRW w/ Dana M300
