Carli COMMUTER 2.0 4.5/5.5" Lift Kit, 2017-22 Ford F250/F350, Diesel

The Carli Commuter system is designed for 2017-2022 Ford Super Duty trucks wanting improved ride for daily driving and standard truck usage. While this system levels the truck, the rear goal is dramatically improved ride quality, which is accomplished through completely custom Carli spec 2" diameter shocks, coils tuned specifically for gas and diesel applications, and the highest quality USA made supporting parts. With almost double the factory wheel travel and a huge change in ride, this Carli Commuter level height system is in a league of its own.

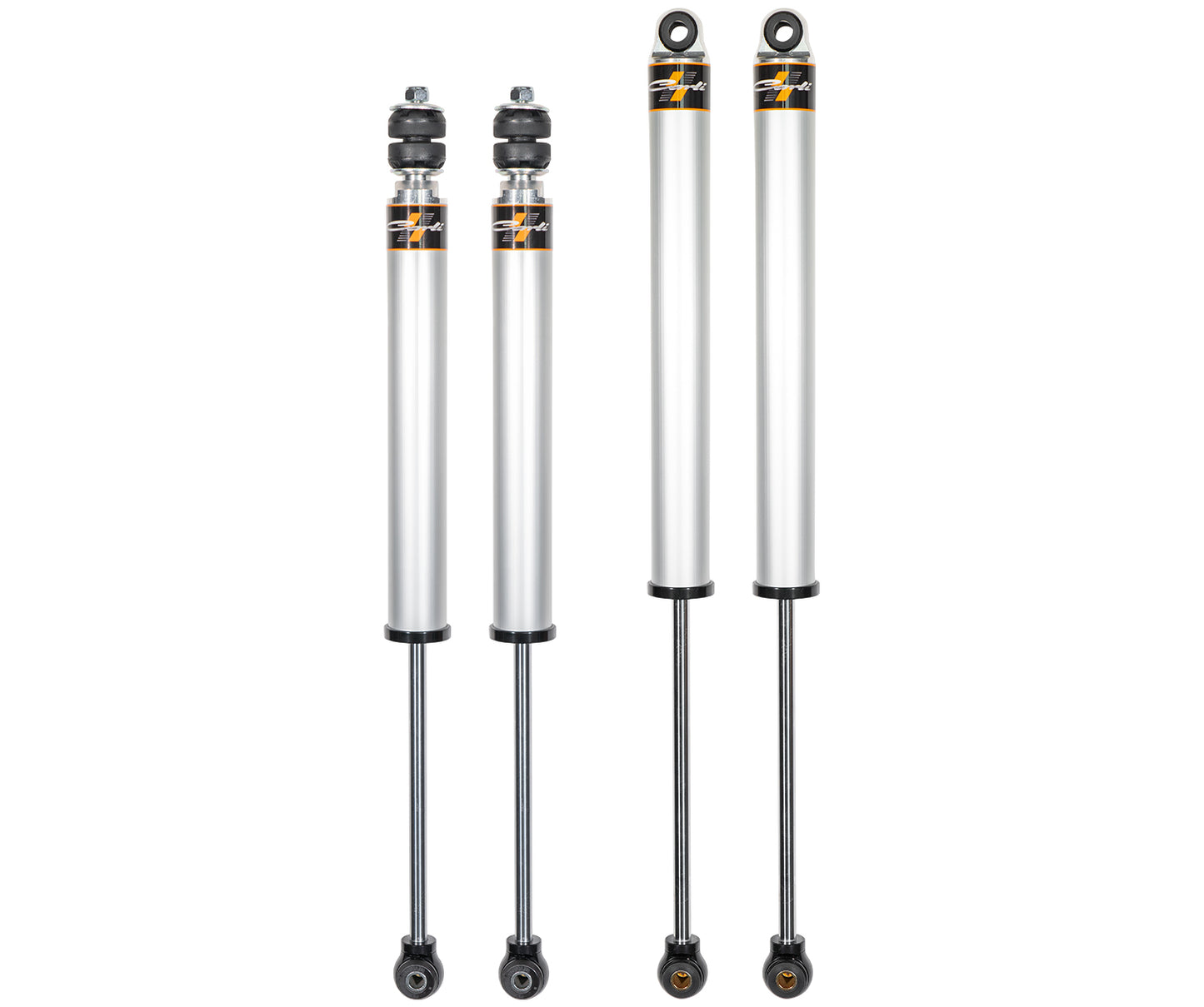

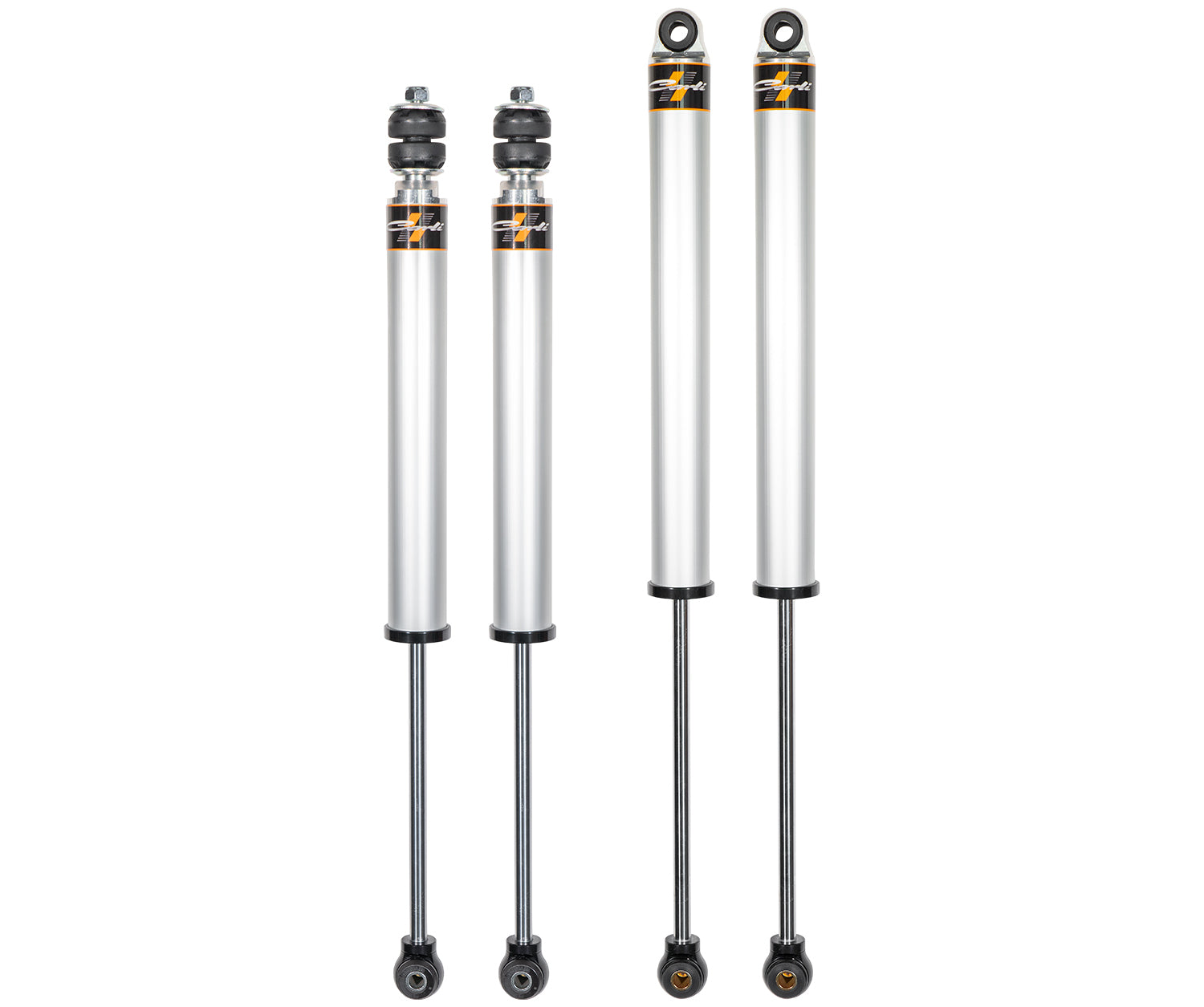

The mono-tube, internal reservoir, Carli SPEC 2.0 boasts 6063 Aluminum construction, anodized body for corrosion resistance, 5/8″ hardened steel chrome plated shaft, full serviceability & rebuildability and are built with 1-peice bushings in the 6061 billet rod-ends. These shocks are spec’d with a premium 5WT oil to balance lubricity, consistent damping and the widest available range in temperature variation. We back these with a 1-year warranty, serviced by Carli. More details on these shocks can be found below.

• Experience improved handling and stability with the Carli Commuter Suspension System featuring Carli-Tuned corrosion resistant 2.0 IFP shocks.
• Shocks included are valved specifically for use with stock leaf springs or Carli Progressive Add-a-Pack when selected above.
• NOT RECOMMENDED for use with Carli full Progressive Spring Pack
• System includes linear rate coil springs, front and rear shock package, brake line kit, bump stop drops, caster correction shims and adjustable track bar.
• Increases wheel travel to 11.0" front and 13.8" rear.

• Fits up to 37" tires with ease for a more aggressive appearance and better offroad performance.

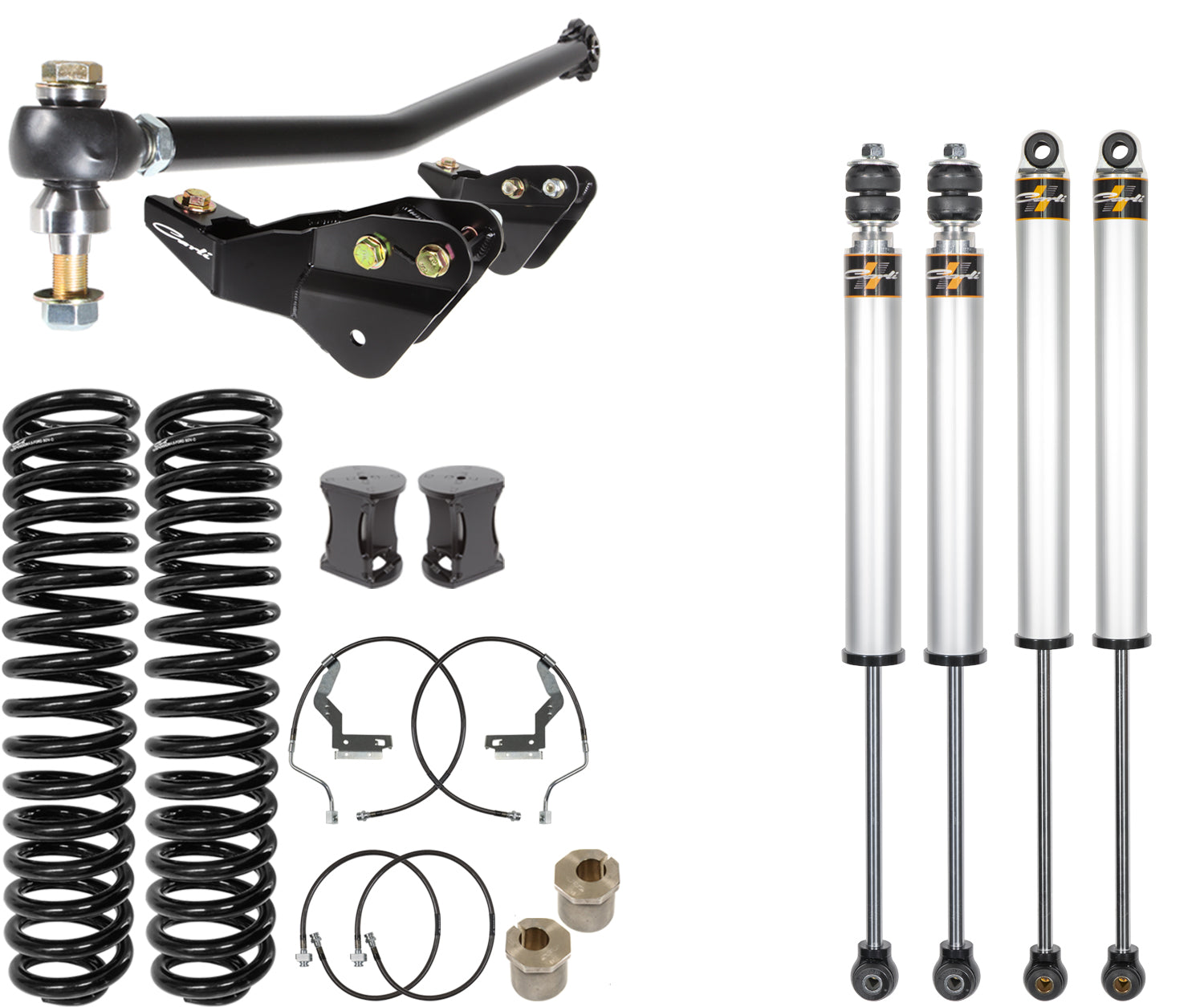

COMPONENTS

- Carli Front Ford Super Duty 4.5/5.5" Leveling Coils
- Carli 2.0 IFP Front/Rear Custom Tuned Shock Package
- Carli 2017+ Ford Super Duty Adjustable Track Bar
- Carli 2017+ Ford Super Duty Front Stainless Braided Brake Lines
- Caster Correction Shims
- Carli Leveling Front Bump Stop Drops

The Commuter package shocks are offered in two valving profiles. Select the stock leaf pack/add a pack or Carli full replacement rear leaf packs accordingly to what you'll be using on the truck. We do not recommend running the full leaf tune with stock leaf packs and vise versa.

The 2020+ Ford F250/350 Platform is the same as the 17-19 but they lowered the front 1″ and the rear 1″-1.5″ depending on the cab configuration and 250/350 designation. For this reason, the only change to the suspension systems will be the stated lift height. The 2.5″ Lift Systems from the previous generation, 2017-19, are now 3.5″ for the 2020.

Fitment

5.5" Lift - 2020+ F250/350 4x4 Diesel, Base Kit
4.5" Lift - 2017-19 F250/350 4x4 Diesel, Base Kit

VIEW INSTRUCTIONS
