Carli Coilover Mounts 05-16 Ford F250/F350

The Carli Coilover Conversion Bracket is designed specifically around Carli coilover and coilvoer / bypass systems.

The 05-16 Super Duty Platform has a riveted coil bucket from the factory. Punch these rivets, drill the frame holes to 1/2″ and bolt in a custom-spec Carli Coilover to allow for and amazing ride and infinite adjustability.

Each mount is constructed out of 1/4″ cold rolled steel for superior strength. These mounts bolt in place of the existing riveted coil bucket using 1/2″ Grade 8 fasteners. The coilover sits atop the axle in place of the coil-spring. The upper mount is lifted as high as possible to maximize travel length.

Bypass shock mounts are also incorporated into the brackets (positioned in the factory shock location) should go-fast desert shenanigans be in store.

These fabricated mounts eliminate the factory coil buckets and bolt directly to the frame.

• Constructed from 1/4" Fabricated cold rolled steel for maximum strength.
• Features secondary shock mount allowing for the addition of a bypass shock at any time.

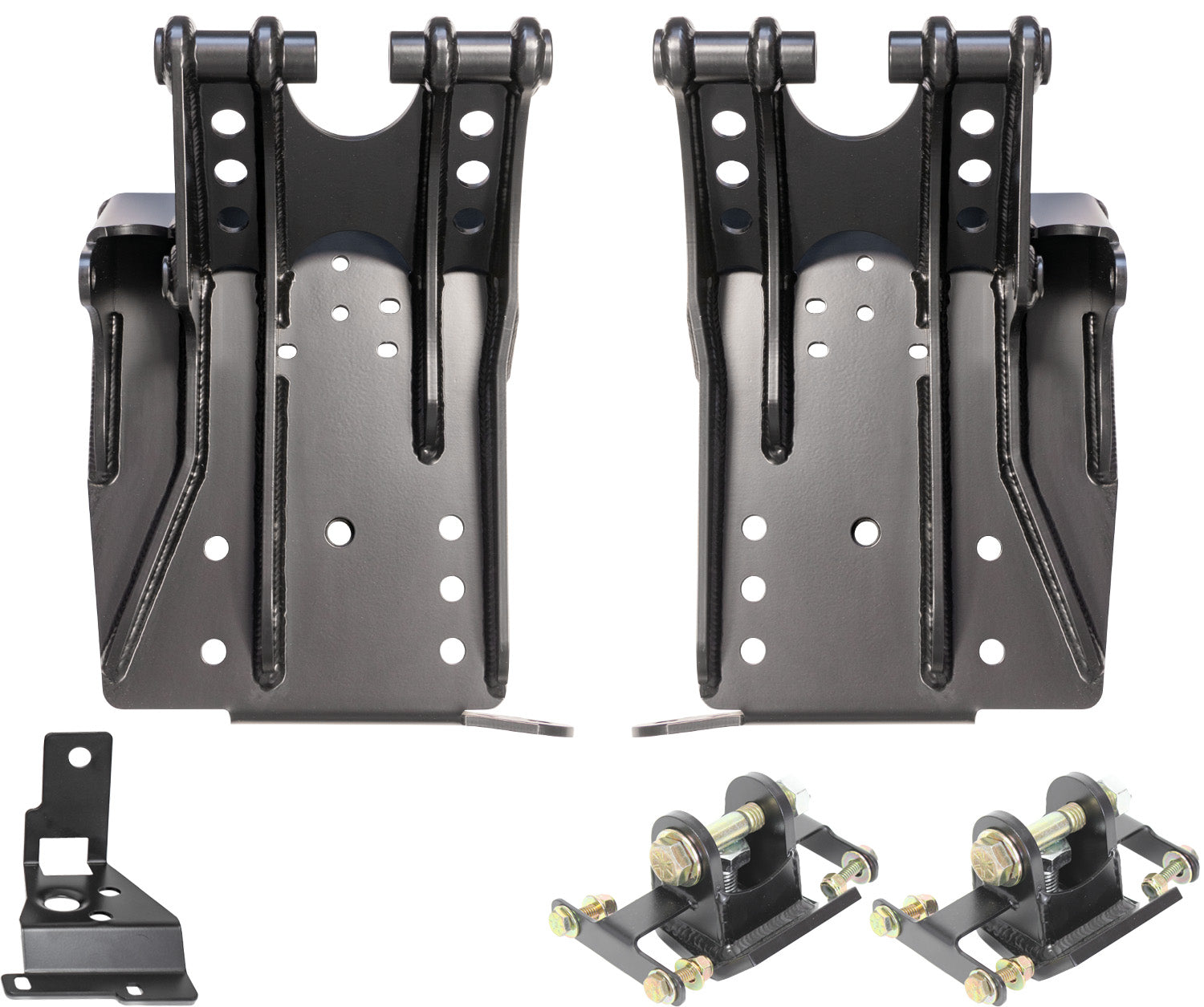

• Includes upper and lower mounts with all necessary hardware. Completely bolt-on with no welding required.
• Finished in durable black powdercoat.
