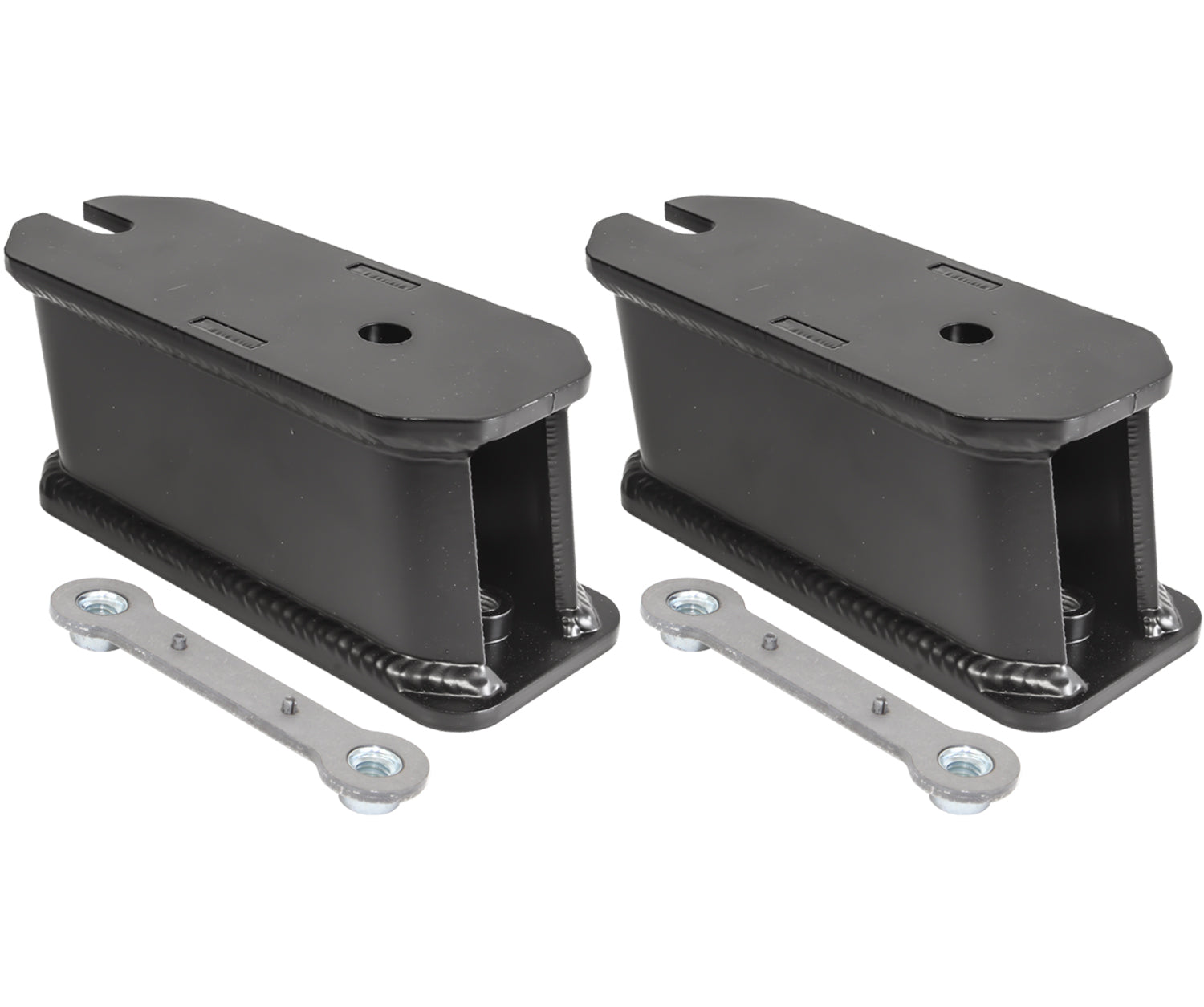

CARLI 17-23 FORD F250/350 4X4 STOCK SWAY BAR FRAME DROP BRACKET - 2.5"/3.5" LIFT

Carli Sway bar drop brackets are necessary for geometry correction on Ford 2017-23 F250/F350s with 2.5"/3.5" of front lift.

• Geometry corrected on 2.5"/3.5" lifts
• Fabricated steel design.
• Direct bolt in.
• Includes grade 8 hardware.

2017-19: The 2.5″ Carli System will use either the CS-FSBD-LVL-17  (Drop brackets) OR the CS-FEL-LVL-17 (Stainless Sway Bar End Links). The drop brackets will be more cost-effective and maintain the factory sway bar links. The Carli Stainless Sway bar links are a far more robust, fully serviceable and rebuildable option that won’t interfere with plow brackets.

2020+: The 3.5″ Carli System will use either the CS-FSBD-LVL-20  (Drop brackets) OR the CS-FELKIT-LVL-20 (Stainless Sway Bar End Links + Short Drop-Forward Block). The drop brackets will be more cost-effective and maintain the factory sway bar links. The Carli Stainless Sway bar links are a far more robust, fully serviceable and rebuildable. The included drop brackets perfectly position the Carli Sway bar links to cycle the extended travel range. We do not currently have an option that’s snow-plow compatible for the 2020+.
