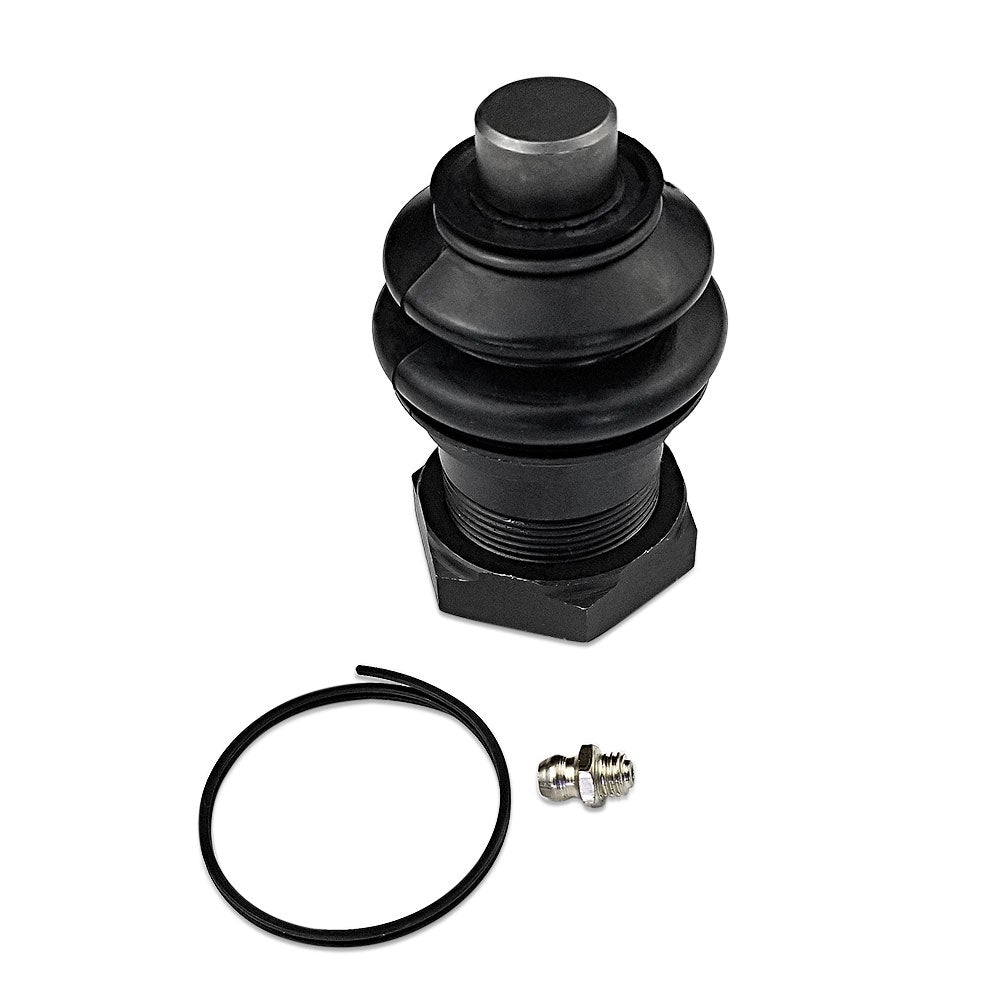

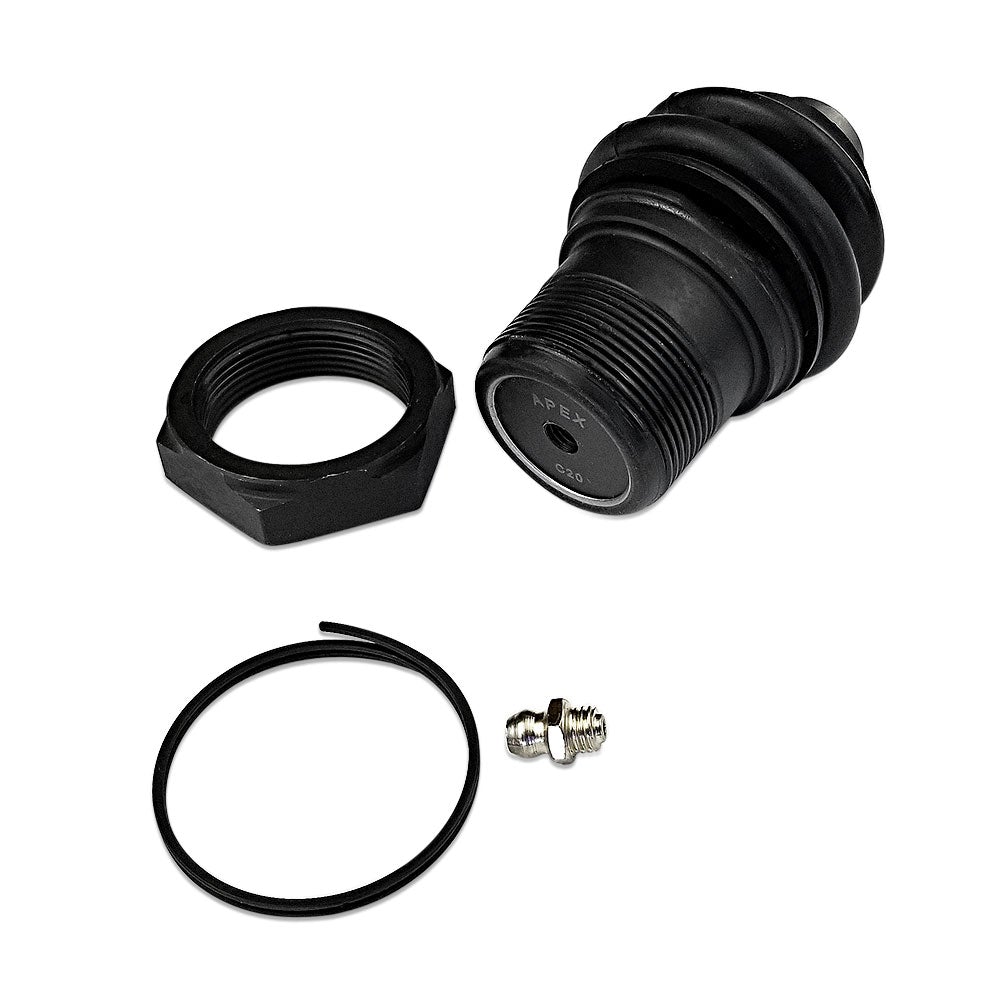

HD Ball Joint Fits: 14-20 Polaris RZR

Polaris Ball Joint For 14-20 Polaris RZR

Apex Chassis

What It Fits:
Polaris RZR XP 1000 (2014-2020) ALL
Polaris RZR XP 4 1000 (2014-2020) ALL
Polaris RZR XP Turbo (2014-2020) ALL
Polaris RZR XP 4 Turbo (2014-2020) ALL
Polaris RZR XP Turbo S (2014-2020) ALL

• Phosphate Finish: Extremely durable. Double coated. Threads coated as well. Rugged look.
• Grade 8 - Class 10.9 Hardware: Superior tensile strength.
• Tension Nut: Very strong hold in most applications.
• SAE 1045 Solid Steel Forged Housing: This is unequivocally the best carbon alloy steel for this application.
• Knurled Housings: No.
• CNC Machined Housing: Make our parts and bearings dimensionally perfect, eliminating any die wear issues.
• Military Grade Acetal Bearing: The same bearing material spec'd by the US military for Hummer ball joints. This material is: dimensionally stable (doesn't expand or contract with hot or cold, water or oil absorption), it can be polished smooth as steel, is anti-friction, Doesn't wear itself out under load like metal on metal, and can take an absolute pounding.
• SAE 4140 hot forged Chromoly Ball Studs: For the strongest possible metallurgy.
• Induction Heat Treated Ball Studs: Provides a very precise heat treatment to the exact depth and location we want it.
• Polished Ball Studs: Are built like an anti-friction bearing with extremely precise tolerances.
• CR Rubber Boots: The most durable material for undercar applications. Resistant to deterioration from road level ozone, oil/gas/engine fluids and extreme heat or cold
• Accordion Boot: ideal for high-articulation components, more flexibility means longer life.
• Pre threaded Zerk Housing: If you have ever installed a MOOG Ball Joint without a pre-threaded zerk fitting you will understand what a simple but great feature this is. Another installer fav.
• Greaseable: Because it should be.
• Pre-Greased: Just in case you forget, we have you covered.
• Gull Winged Grease Grooves: Allows for improved lubrication disbursement around the ball stud.
• Zerk Fittings: Included for every application.
• Custom Features: Upgraded design secures ball joint to control arm via a robust nut and forged flange instead of OE C-clip design.

About APEX Chassis

At APEX, we Design, Engineer and Manufacture all of our products to our exact specifications. If it says APEX on it, from start to finish it is our product. As a family, we have been designing and building steering and suspension products for over 30 years.

APEX Steering Components

Many "steering" companies make tubes and then outsource the most complicated and important part of the system, the rod ends. At APEX, every component in your steering system is designed, engineered and manufactured by us to work together for the best possible system.

In our steering systems we also ensure that all the geometry is built into our forged steel ends, so you will never see bends in the tubes. Bends in tubes are used as an inexpensive way to re-purpose straight tie rod ends when a custom engineered off-set tie rod should be used.

APEX Bearings & Joints

The bearing designs that we use are individually tailored to each part based on application and load. Our ball joints are the go to ball joint for many podium finishers in both NORRA 1000 style and Ultra 4 style racing.

We also keep our designs simple for easy install and increased durability. Sorry, you just can’t build a durable, rebuildable ball joint. And we think you want to spend your time wheeling, so nothing adjustable that you have to monitor or maintain. Just an extremely robust product at an affordable price.
